Harmsco Calypso Blue Poly-Pleat 10″ x 4-1/2″, 1 Micron Absolute Pleated Sediment Cartridge (4 GPM, 8 sq ft Media)

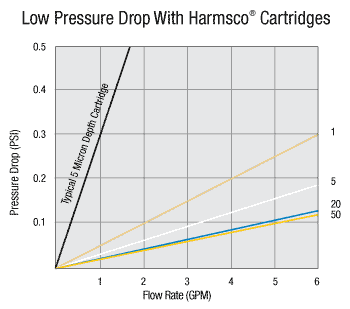

Initial pressure drop using Poly-Pleat cartridges is exceptionally low due to our pleated design and increased surface area. Pressure drop data is shown here, calculated for new cartridges in clear water.

Highly efficient filter cartridges made of pleated Polyester-Plus filter media. The industry’s largest surface area.

Features & Benefits:

• Lower overall operating cost
• Longer filter runs for fewer change outs
• Lower initial pressure drops
• Reduced maintenance down time and cost
• Increased contaminant removal
• High flow capability – 4 GPM
• Pleated design for more surface area
• FDA approved materials – NSF 61 certified
• Engineered media for superior performance
• Cleanable and reusable in most applications and micron sizes
• Thermally bonded end caps to ensure better sealing

Specifications:

• Filter media – Polyester-Plus
• Temperature – 140°F (standard cartridges) / 200°F (high temp. cartridges)
• Media (sq ft) – 8
